Front Acoustic Gasket
Seals front chamber to prevent sound leakage and maintains acoustic pressure for better bass response
Acoustic silicon
Stop leakage, noise, and IP failures before they reach production. From speaker gaskets to microphone seals, we deliver precision acoustic silicone parts with 24-hour engineering review and mass production consistency.
24-Hour DFM Review
Fast Prototyping
Production Consistency
ISO Certified Quality
In-House Tooling
Export Ready
NDA Friendly
Problem Prevention
Top 10 Acoustic Failures & How to Prevent Them
Every acoustic failure has a root cause. Understanding these common issues helps you design parts that work right the first time.
Sound Leakage
Most common complaint
Root Cause
Insufficient compression force or sealing path breaks due to parting line placement on the sealing surface
Our Prevention
DFM review verifies compression zones, parting line location, and sealing path continuity before tooling
Rattle & Buzz Noise
Assembly quality issue
Root Cause
Friction between parts, gaps allowing vibration, or rebound force mismatch during operation
Our Prevention
Material selection for low friction coefficient and damping validation during prototype phase
IP Rating Failure
Testing rejection
Root Cause
Flash on sealing surface, tolerance drift affecting compression, or improper waterproof architecture
Our Prevention
Flash control strategy in tooling design plus in-process inspection checkpoints with traceability
Adhesive Peel-Off
PSA failure
Root Cause
Surface contamination, wrong adhesive selection for substrate, or insufficient surface preparation
Our Prevention
Adhesive matching to substrate material plus clean room processing with surface treatment protocols
Assembly Interference
Fit issues
Root Cause
Geometry mismatch with housing, tolerance stack-up errors, or deformation under compression
Our Prevention
Tolerance analysis during DFM phase and assembly simulation with customer housing models
High Compression Set
Long-term seal loss
Root Cause
Material grade mismatch, curing process issues, or compression design exceeding material limits
Our Prevention
Material specification aligned to compression set targets plus aging validation tests per requirement
Warping & Deformation
Dimensional instability
Root Cause
Wall thickness variation, cooling rate differences, or improper ejection forces during demolding
Our Prevention
Uniform wall thickness design guidance and process parameter optimization with cooling control
Aging & Yellowing
Environmental damage
Root Cause
UV exposure, temperature cycling, or chemical environment mismatch with material selection
Our Prevention
Environmental condition profiling to match material grade with UV stabilizers or special additives
Dust Ingress
Barrier failure
Root Cause
Gap design issues in dust barrier structure or mesh opening size mismatch with particle requirements
Our Prevention
Barrier architecture review with mesh specification aligned to IP rating and acoustic transmission needs
Batch Variation
Inconsistent quality
Root Cause
Process control gaps, incoming material variation, or insufficient inspection checkpoints
Our Prevention
Multi-point QC system with IQC, IPQC, FQC checks plus statistical process control and lot traceability
How We Eliminate These Failures
Early DFM warnings identify risks before tooling investment
Material and process matching based on actual application risk profile
Multi-checkpoint inspection system with full batch traceability
Understanding Placement
Where Acoustic Silicone Works in Your Device
Every acoustic device has critical seal paths, vibration paths, and dust/water barriers. Understanding where parts go and what they do helps you specify the right solution.
Speaker module showing seal and damping paths
1
2
Speaker Positioning Ring
Maintains precise speaker position and absorbs assembly tolerances to prevent rattle during vibration
3
Vibration Isolation Pad
Decouples speaker from housing to reduce unwanted resonance transfer to device body
4
Dust/Water Barrier
Protects speaker membrane from particles and moisture while allowing acoustic transparency
Microphone acoustic path and sealing structure
1
Acoustic Seal Ring
Creates acoustic isolation between microphone port and housing to prevent sound path interference
2
Waterproof Membrane Support
Holds waterproof membrane in position while maintaining acoustic transmission and IP rating
3
Dust Filter Gasket
Seals dust filter to microphone housing preventing particle ingress without acoustic loss
4
PCB Cushion Pad
Provides compression between microphone and PCB while preventing acoustic feedback through structure

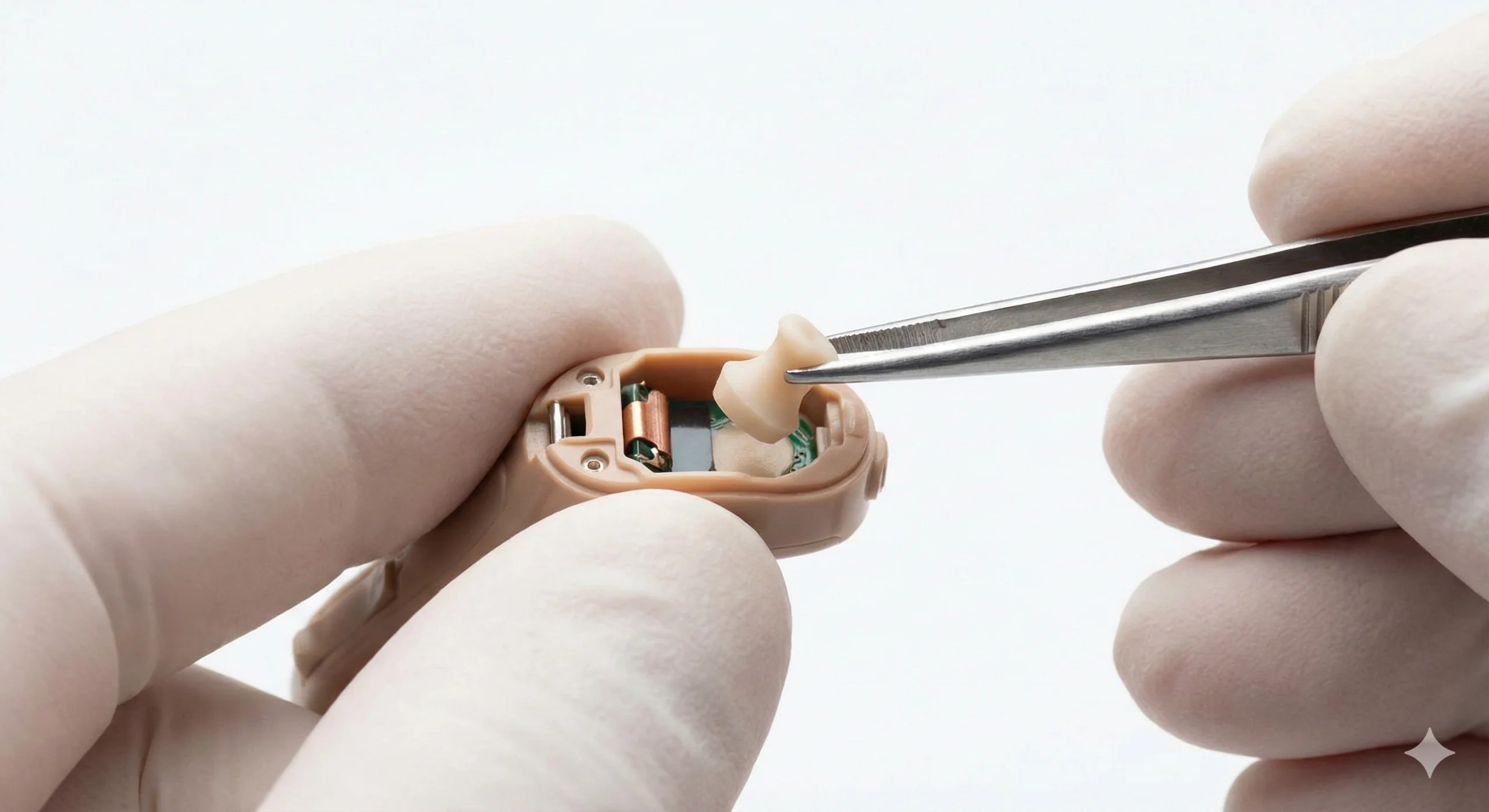

Earbud acoustic chamber and sealing components
1
Driver Sealing Gasket
Isolates driver chamber from back cavity to maintain acoustic separation and sound quality
2

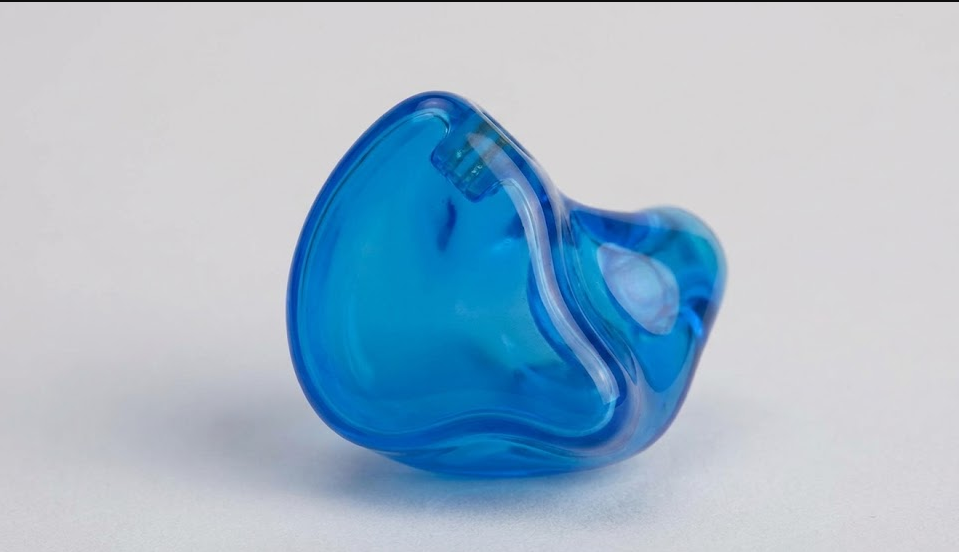

Ear Tip Seal
Creates comfortable seal in ear canal for passive noise isolation and bass retention
3
Anti-Rattle Cushion
Prevents component movement inside earbud housing during user activity and vibration
4
Vent Membrane Gasket
Seals pressure equalization vent while maintaining waterproof integrity and acoustic tuning
Need help identifying which parts your device requires?
Get Expert Part Recommendation
Product Categories
Find Your Exact Acoustic Part Fast
Browse by function to quickly locate the silicone parts your acoustic device needs, with material recommendations and common failure modes for each type.

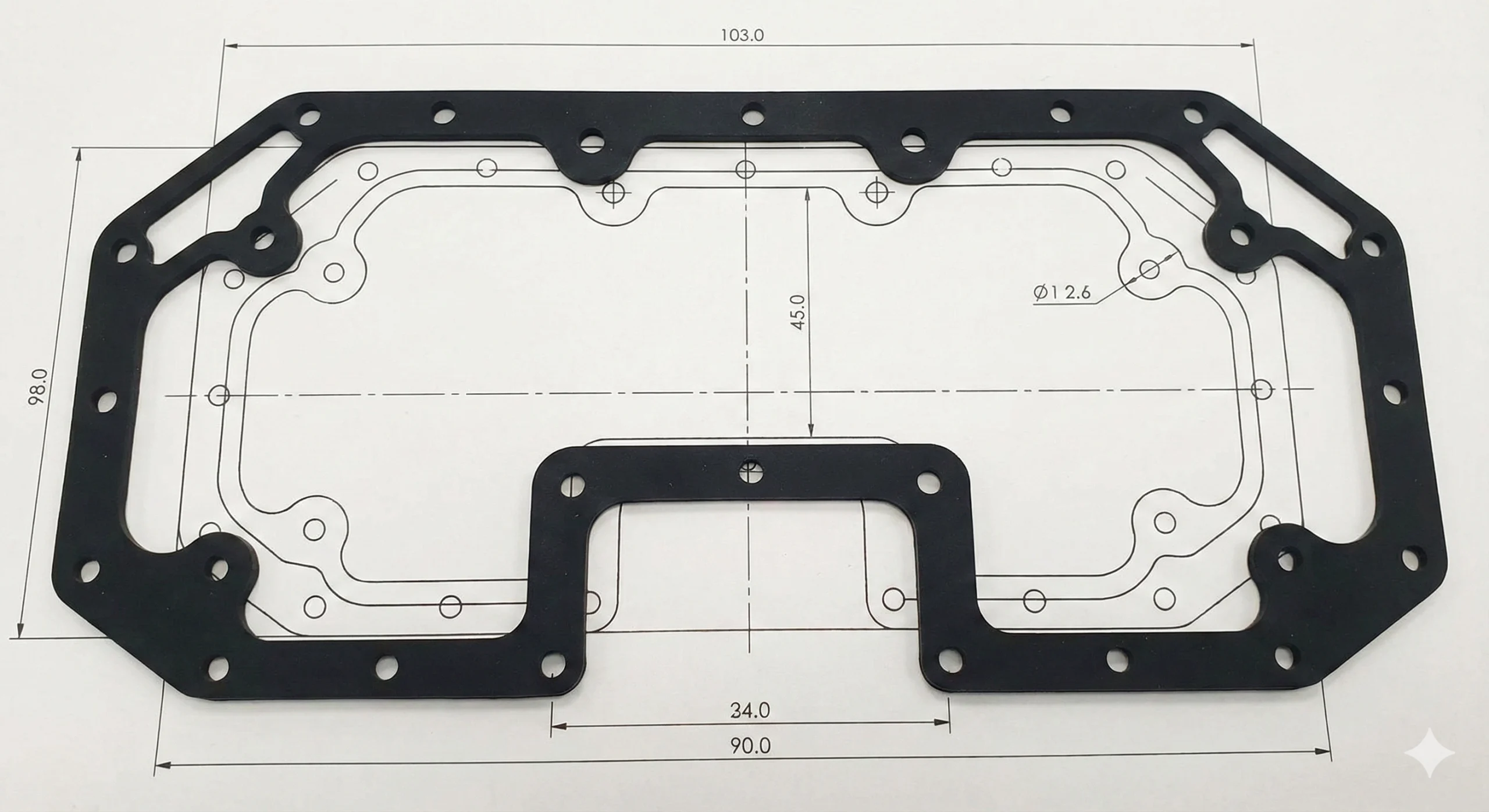

Sealing Parts
Prevent sound leakage and maintain IP ratings with precision-molded acoustic seals designed for consistent compression.
Common Types
Speaker gaskets, microphone O-rings, enclosure seals, perimeter barriers, waterproof plugs
Damping Parts
Eliminate rattle and unwanted resonance with vibration isolators engineered for specific frequency ranges.
Common Types
Vibration isolators, damping pads, shock absorbers, anti-rattle bumpers, isolation feet
Dust/Water Barriers
Protect sensitive acoustic components from environmental ingress while maintaining acoustic transparency.
Common Types
Protective rings, mesh supports, barrier covers, vent seals, membrane holders
Positioning & Assembly
Ensure precise component placement and absorb tolerance stack-up with custom positioning features.
Common Types
Spacers, alignment cushions, positioning rings, assembly guides, tolerance absorbers
PSA Adhesive Die-Cuts
Simplify assembly with pressure-sensitive adhesive backing matched to your substrate material.
Common Types
Adhesive-backed gaskets, foam pads with PSA, mounting tapes, sealing strips, composite layers
Overmolded Composites
Integrate metal or plastic inserts with silicone sealing in a single assembly-ready component.
Common Types
Insert-molded gaskets, hybrid seals, metal-backed dampers, multi-material assemblies
Can't Find Your Exact Part?
We specialize in custom acoustic silicone solutions. Send us your requirements and we'll design the right part for your application.
Request Custom Part Design
Industry Solutions
Acoustic Silicone by Device & Industry
Different industries have different priorities. We match our acoustic silicone solutions to your specific validation requirements and failure risks.
Consumer Electronics
High-volume production demands consistent aesthetics, tight tolerances, and reliable mass production processes that maintain quality across millions of units.
Key Performance Priorities
- Cosmetic perfection with zero visible flash or defects
- Tight dimensional tolerances for assembly automation
- Batch-to-batch color and hardness consistency
Typical Validation Focus
- IP rating verification for water resistance claims
- Drop test survival and assembly robustness
- Acoustic performance consistency across production lots
Smart Wearables
Compact devices require miniature parts with tight tolerance stack-up management, plus resistance to sweat, water, and continuous skin contact.
Key Performance Priorities
- Miniature part geometry with sub-millimeter tolerances
- Skin-safe materials with biocompatibility considerations
- Sweat and moisture resistance for long-term wear
Typical Validation Focus
- Water immersion testing for swimming and showering use
- Sweat and cosmetics exposure aging validation
- Assembly tolerance stack-up in miniature housings
Automotive Audio
Extreme temperature cycling, long service life requirements, and stringent quality standards demand materials and processes that maintain performance for years.
Key Performance Priorities
- Temperature resistance from -40°C to 85°C continuous operation
- Long-term compression set stability over 10+ year service life
- IATF 16949 quality system compliance and PPAP documentation
Typical Validation Focus
- Temperature cycling tests simulating years of exposure
- Compression set measurement after extended thermal aging
- Vibration and shock resistance per automotive standards
Professional Audio
Studio monitors, PA systems, and live sound equipment demand structural stability, zero rattle, and reliable enclosure sealing for premium acoustic performance.
Key Performance Priorities
- Structural vibration isolation preventing cabinet resonance
- Zero-rattle design even at high SPL output levels
- Reliable enclosure sealing maintaining acoustic chamber integrity
Typical Validation Focus
- Vibration testing at maximum driver excursion levels
- Long-term compression retention under continuous use
- Acoustic chamber leakage testing for bass response
Match Our Experience to Your Industry
We understand the specific validation requirements and failure modes for your device category. Let's discuss your application needs.
Schedule Engineering Consultation
Material Selection Guide
LSR vs Solid Silicone vs Foam vs Composite
Choose the right material based on your sealing, damping, and assembly requirements. Each material type offers distinct advantages for specific acoustic applications.
Liquid Silicone (LSR)
For Sealing & Precision
Best For:
- Microphone seals
- Precision O-rings
- Waterproof barriers
- IP68 applications
Key Benefits:
- Tight dimensional tolerances
- Minimal flash control
- Biocompatible grades
Typical Hardness:
20A - 80A Shore
Solid Silicone
For Geometry & Cost
Best For:
- Speaker gaskets
- Positioning rings
- Large enclosure seals
- High volume parts
Key Benefits:
- Broader geometry options
- Cost-effective tooling
- Easy color matching
Typical Hardness:
30A - 70A Shore
Foam Silicone
For Cushioning & Damping
Best For:
- Vibration dampers
- Cushioning pads
- Gap fillers
- Shock absorbers
Key Benefits:
- High compressibility
- Excellent damping
- Low closure force
Typical Density:
0.3 - 0.6 g/cm³
Composite/Overmold
For Integration
Best For:
- Complex assemblies
- Multi-function parts
- Snap-fit designs
- Reduced assembly
Key Benefits:
- Insert-molded solutions
- Metal/plastic integration
- Structural + sealing
Typical Configuration:
LSR + PC/PA/Metal
Material Decision Tree Questions
❶ Target Function?
❷ IP Requirement?
❸ Temperature Range?
❹ Assembly Method?
❺ Volume & Cost Target?
❻ Special Requirements?
Get Material Recommendation in 24 Hours
Send us your application requirements and we'll recommend the optimal material, process, and validation approach tailored to your needs.
Request Material Analysis
Process Selection
Compression • LSR Injection • Overmolding • PSA Die-Cut
Select the optimal manufacturing process based on geometry complexity, tolerance requirements, cosmetic needs, and cost expectations for your acoustic parts.
Compression Molding
Solid Silicone • High Volume • Cost-Effective
Best For
- Large simple geometric speaker gaskets
- Cost-sensitive high-volume production
- Parts with moderate tolerance needs ±0.2mm
Watch-Outs
- Flash control requires trimming and deburring
- Longer cycle times compared to LSR injection
- Post-cure may be needed for full crosslinking
How We Control It
- Precision mold design with flash minimization
- Automated deflashing and visual inspection
- Process parameter optimization per material batch

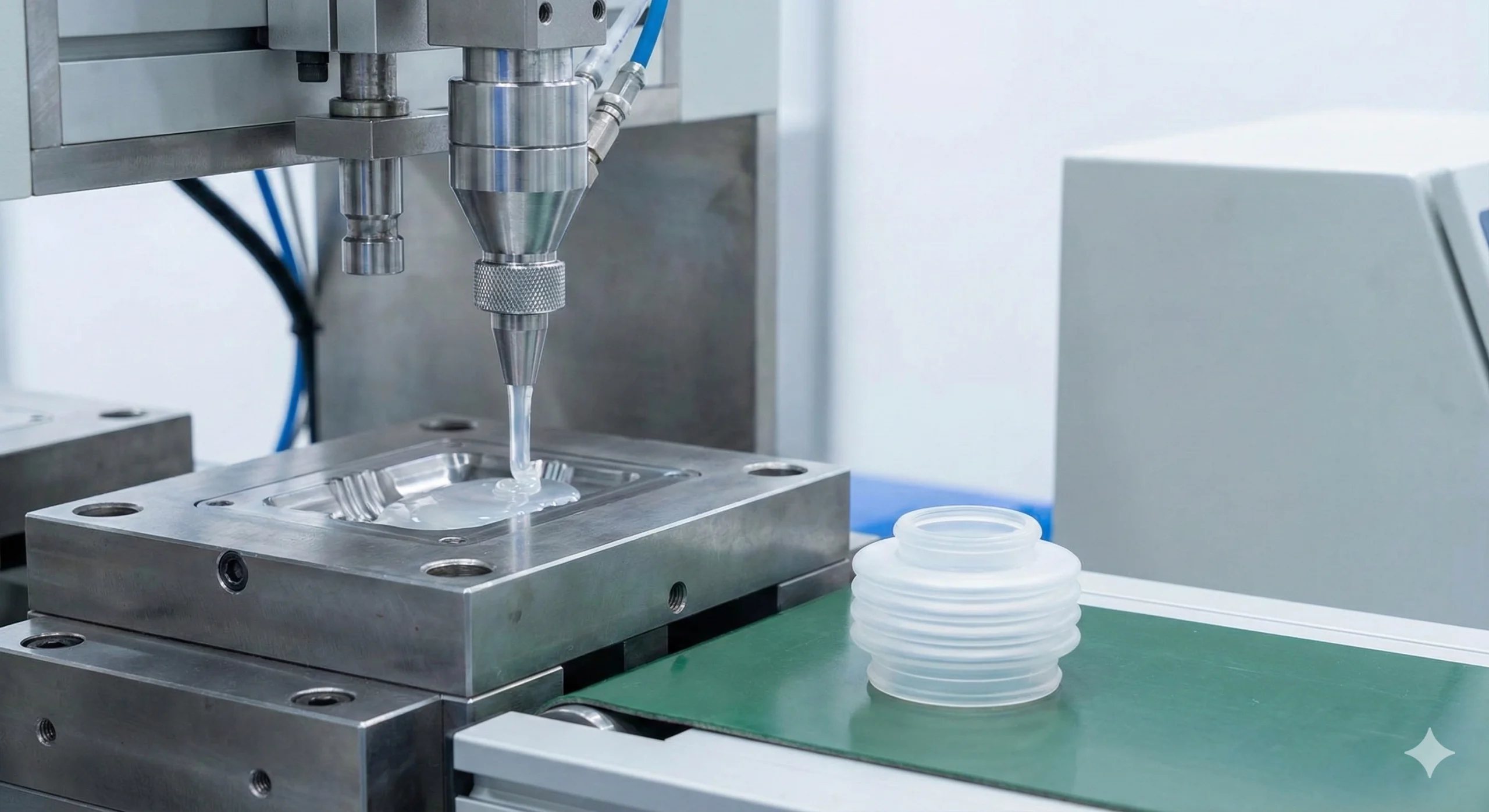

LSR Injection Molding
Liquid Silicone • Precision • Clean Room
Best For
- Precision microphone seals and O-rings ±0.05mm
- Complex geometries with tight tolerances
- Medical-grade or biocompatible requirements
Watch-Outs
- Higher tooling investment and material cost
- Requires clean room manufacturing environment
- Careful material handling to prevent contamination
How We Control It
- Class 100K clean room manufacturing facility
- Automated injection with minimal flash generation
- In-line dimensional inspection and SPC tracking
Two-Shot Overmolding
Multi-Material • Integration • Assembly Reduction
Best For
- Combining structural plastic with sealing function
- Reducing assembly steps and total part count
- Complex multi-function integrated components
Watch-Outs
- Bond strength validation between materials required
- Material compatibility testing and qualification
- Higher process complexity and cycle time
How We Control It
- Material adhesion testing before production release
- Two-shot tooling with precise alignment features
- Bond strength inspection sampling per production lot
PSA Die-Cutting
Adhesive-Backed • Fast Assembly • 2D Geometry
Best For
- 2D gaskets with pressure-sensitive adhesive backing
- Quick assembly without fixtures or screws
- Foam or thin sheet silicone materials
Watch-Outs
- Adhesive selection critical to substrate material
- Surface preparation requirements before application
- Peel strength validation for application conditions
How We Control It
- Adhesive matching to substrate with test validation
- Clean room lamination process with quality controls
- 90° and 180° peel testing per ASTM standards
Not Sure Which Process Fits Your Part?
Send us your drawing and requirements. We'll analyze geometry, tolerance, volume, and cost to recommend the optimal manufacturing process for your acoustic silicone parts.
Get Process Recommendation
Critical Specifications
Engineering Specs That Drive Sound & Sealing
Every specification impacts performance. Understanding how hardness, compression, tolerance, and friction affect your acoustic parts prevents costly failures in production.
Hardness (Shore A)
Why It Matters
Balances sealing force vs assembly ease. Too soft = poor durability, too hard = insufficient conformability to surfaces
Failure Risk
Leakage if too hard, compression set failure if too soft for application loads
How We Control
Durometer testing per ASTM D2240 on every production lot with SPC tracking
Compression %
Why It Matters
Determines sealing effectiveness. Must be sufficient without over-stressing material or causing permanent set
Failure Risk
Under 15% = leakage risk. Over 40% = permanent deformation and seal loss over time
How We Control
DFM review validates compression zones before tooling. Prototypes tested for assembly force
Compression Set
Why It Matters
Predicts long-term seal retention. High set means eventual leakage over product life cycle
Failure Risk
Seal loosens over time, causing late-life IP failures and customer complaints
How We Control
Aging validation per ASTM D395 at elevated temperature matching application conditions
Dimensional Tolerance
Why It Matters
Affects assembly fit and seal consistency across production batches and part-to-part variation
Failure Risk
Loose tolerance = batch variation. Tight tolerance = yield loss and cost increase
How We Control
OGP automated inspection plus statistical process control with Cpk tracking
Friction Coefficient
Why It Matters
High friction causes squeaks, rattles, and wear during vibration in acoustic applications
Failure Risk
Audible noise generation during speaker operation or user handling
How We Control
Low-friction material grades available and surface treatment options like powder coating
Tear Strength
Why It Matters
Prevents propagation of edge nicks during assembly or use in thin-section designs
Failure Risk
Thin sections tear during installation or vibration cycles leading to seal failure
How We Control
Material selection validation per ASTM D624 Die C with minimum requirements
Get a Free Spec Review
Send us your current specifications or target requirements. We'll review for potential failure modes and recommend optimal values for your application.
Request Spec Analysis
Design Guidelines
12 Acoustic DFM Rules to Prevent Rework
Practical no-rework guidelines covering sealing surface design, parting line placement, flash control, venting, and assembly tolerance stack-up for acoustic silicone parts.
1
Keep Parting Line Away From Sealing Surface
Parting line flash interrupts the sealing path causing leakage. Position parting line at least 2mm away from critical sealing surfaces or place it perpendicular to the seal direction.
Best Practice: Use raised sealing ribs that contact above the parting line plane, or design dual-stage sealing where the primary seal is flash-free.
2
Define Clear Compression Zones with Stops
Without compression stops, assembly force variation causes inconsistent sealing. Design hard stops in the housing to control exact compression percentage between 20-35% for most applications.
Best Practice: Add metal or plastic stops in the housing assembly that limit closure, protecting the silicone from over-compression while ensuring minimum seal force.
3
Flash Control Strategy: Design + Tooling + Inspection
Flash is inevitable in silicone molding. Control it through three layers: design geometry that minimizes flash impact, precision tooling with tight shut-off, and inspection criteria that catch excessive flash before assembly.
Best Practice: Allow 0.05-0.15mm flash tolerance in non-critical areas. For critical surfaces, use post-molding trimming or LSR injection which produces minimal flash.
4
Vent Design to Avoid Air Traps and Voids
Trapped air creates voids that weaken the part and create leak paths. Design venting channels in the mold at the last-fill locations and thin sections where air naturally collects.
Best Practice: Add 0.03-0.05mm vent grooves in the mold at predicted air trap locations. For complex geometries, conduct mold flow simulation to identify problem areas.
5
Draft Angles & Demolding Without Deformation
Silicone's flexibility allows zero draft in many cases, but deep ribs or thin walls need 2-5° draft to prevent drag marks or tearing during ejection. Balance draft with dimensional accuracy needs.
Best Practice: Use 3-5° draft for walls deeper than 10mm. For precision dimensions, use core pulls or slides instead of draft angles.
6
Assembly Tolerance Stack-Up Accommodation
Silicone parts must accommodate tolerance stack-up from plastic housing, metal frames, and assembly process variation. Design sufficient compression range (±0.2-0.3mm) to absorb these variations.
Best Practice: Run tolerance analysis with worst-case scenarios. Design the gasket with 25% nominal compression, allowing 15-35% range to absorb stack-up variation.
7
Uniform Wall Thickness (±30% Variation Max)
Large thickness variation causes differential curing and cooling rates, leading to warpage and internal stresses. Maintain wall thickness within ±30% of nominal where possible.
Best Practice: Transition gradually between thick and thin sections over 3-5mm length. Avoid sudden steps that create stress concentration points.
8
PSA Positioning Features for Alignment
Adhesive-backed parts need alignment features to prevent misplacement during assembly. Add tabs, notches, or asymmetric shapes that key into housing features for fool-proof installation.
Best Practice: Design at least two non-symmetric positioning features. Include poka-yoke (error-proofing) geometry that physically prevents incorrect orientation.
9
Waterproof Architecture at Cable/Port Interfaces
Interfaces where cables or connectors penetrate the housing are high-risk leak points. Design multi-stage sealing with both static and dynamic compression zones, plus overmold around cables where possible.
Best Practice: Use O-ring + gasket combination at critical ports. For moving parts (buttons, cables), add labyrinth sealing paths as backup to primary seals.
10
Corner Radius Design for Even Stress Distribution
Sharp internal corners create stress concentration points that can tear during compression or vibration. Use minimum R0.5mm radius on all internal corners, R1.0mm preferred for high-stress areas.
Best Practice: Match corner radius to wall thickness - use R = 0.5-1.0× wall thickness as guideline. Larger radius improves material flow and reduces stress.
11
Texture and Surface Finish Specification
Mold surface finish transfers to the part. Specify texture requirements clearly - high polish (SPI A2) for cosmetic surfaces, medium texture (SPI B2-B3) for gripping surfaces, and no texture on sealing surfaces.
Best Practice: Use SPI A2 or A3 polish on sealing surfaces to maximize contact area and seal effectiveness. Avoid unnecessary polishing which adds tooling cost.
12
Tolerance Callout Optimization for Cost
Over-tolerancing increases inspection cost and yield loss without benefit. Specify tight tolerances (±0.05mm) only on critical dimensions like seal contact width. Use standard tolerances (±0.15-0.20mm) elsewhere.
Best Practice: Identify 3-5 critical dimensions for tight control. Use general tolerance blocks for non-critical features, typically ±0.15mm for LSR, ±0.20mm for compression molding.
Project Process
From Drawing to Mass Production
Clear roadmap showing what you send, what we deliver, and how fast you can move from initial quote to production-ready acoustic silicone parts.
What You Send
-
1
Drawing or 3D Model
2D PDF, DWG, or 3D STEP/STL files with dimensions and tolerances
-
2
Target Function
Sealing/damping/IP rating requirements and key performance targets
-
3
Assembly Context
How it assembles, compression method, and mating surface details
-
4
Volume Forecast
Prototype quantity, pilot run, and annual production volume estimates
-
5
Environment Conditions
Operating temperature range, UV/chemical exposure, service life needs
What We Deliver
-
1
DFM Report
Engineering analysis with manufacturability notes and recommended changes
-
2
Material & Process Recommendation
Optimal material grade and manufacturing process for your requirements
-
3
Cost Breakdown
Transparent pricing: tooling cost, part cost, and key cost drivers explained
-
4
Prototype Timeline
Detailed schedule from tooling to first samples with milestone dates
-
5
Validation Plan
Testing and inspection approach aligned to your quality requirements
Typical Project Timeline
Quote & DFM
1-2 Days
Tooling
3-4 Weeks
Prototypes
1 Week
Pilot Run
2 Weeks
Mass Production
Ongoing
Ready to Start Your Project?
Upload your drawing and requirements now. Get your free DFM review and quote within 24 hours, with prototype samples in as fast as 4-5 weeks.
Upload Drawing & Get Started
Quality Control
How We Keep Prototype = Mass Production
Multi-point inspection system with full lot traceability ensures every production batch matches the quality you validated in prototypes. From incoming materials to final shipment, quality is built in at every step.
IQC - Incoming
- Material certification check
- Hardness verification
- Batch traceability coding
- Storage condition control
IPQC - In-Process
- First article inspection
- Hourly dimensional checks
- Visual defect sampling
- Process parameter logging
FQC - Final
- 100% visual inspection
- AQL sampling per plan
- Dimensional report
- Function testing if required
OQC - Shipment
- Packaging verification
- Documentation package
- Lot traceability labels
- CoC & test reports
What You Receive With Every Shipment
Inspection Report
Complete quality record with visual, dimensional, and functional test results per your specification
Dimensional Checks
Critical dimensions measured with calibrated tools, documented with actual values vs tolerances
Lot Information
Full traceability to raw material batch, production date, operator, and inspection records
8D Report (If Needed)
Structured corrective action report for any non-conformance with root cause and prevention plan
ISO 9001:2015 Certified
Full Lot Traceability
Export-Ready Documentation
Questions About Quality Control?
Ask us about our defect handling process, containment procedures, or request sample inspection reports from past projects.
Request Quality Documentation
Testing & Validation
Risk → Verification Matrix
We map every potential failure risk to specific validation tests. From IP rating verification to long-term aging, our testing capability ensures your acoustic parts meet reliability requirements.
Risk vs Verification Testing
Leakage / IP Failure
Air/water tightness testing per IEC 60529, pressure decay validation, immersion testing as required
Noise from Friction
Friction coefficient measurement, abrasion resistance testing, vibration testing at application frequency
Long-Term Compression Set
Compression set testing per ASTM D395 Method B at elevated temperature matching service conditions
PSA Peel-Off
90° and 180° peel strength testing per ASTM D3330, adhesion to actual substrate material validation
Aging & Environmental Cracks
Temperature cycling, humidity aging, UV exposure testing, thermal shock per application environment
Dimensional Drift
OGP automated inspection, CMM measurement, statistical process control with Cp/Cpk tracking
Key Testing Equipment
IP Testing Chamber
Aging Oven
Tensile Tester
Compression Tester
UV Aging Chamber
Humidity Chamber
Peel Strength Tester
Need Validation-Ready Prototypes?
We can align our testing plan with your validation requirements and standards. Share your test specifications and we'll propose a prototype plan that delivers test-ready samples.
Request Validation Plan
Manufacturing Capability
In-House Tooling + Automation + Key Equipment
End-to-end in-house capability from tooling design to final assembly ensures faster iterations, better quality control, and scalable mass production without outsourcing critical steps.
Tooling Development
- In-house mold design with 20+ years silicone expertise
- CNC machining center for precision tooling fabrication
- EDM capability for complex cavity geometry
- Rapid tooling trials and iteration without vendor delays
- Tool maintenance and modification in-house
Molding Lines
- LSR injection molding lines with clean room Class 100K
- Compression molding presses 50-300 tons capacity
- Two-shot overmolding capability for composite parts
- Process parameter logging and SPC integration
- Automated material handling to reduce contamination
Post-Processing
- Automated deflashing and trimming stations
- Pad printing and laser marking for identification
- PSA lamination in clean room environment
- Die-cutting and precision slitting equipment
- Assembly and packaging per customer requirements
Inspection & Traceability
- OGP automated optical inspection system
- Vision inspection stations for visual defects
- Material testing lab (hardness, tensile, compression)
- Barcode tracking system for full lot traceability
- QC data integration with ERP for SPC analysis
Production Capacity Summary
15+
Molding Machines
50-300T
Press Capacity Range
3-7 Days
Typical Tooling Lead
100K+
Monthly Parts Capacity
24/7
Production Shifts Available
5000㎡
Production Floor Space
Ready to Scale Your Production?
Our in-house capabilities mean faster response, better control, and scalable production from prototype to millions of parts. Let's discuss your volume requirements.
Schedule Factory Tour
Proven Results
Leakage Fixed • Noise Reduced • IP Upgraded • Cost Down
Real engineering problems solved through material selection, design optimization, and process control. See how we've helped customers fix acoustic failures and improve production yield.
Smart Speaker
Speaker Leakage Causing Bass Loss
High-volume smart speaker experiencing inconsistent bass response due to air leakage at gasket interface, affecting customer satisfaction scores.
Root Cause
Parting line positioned on sealing surface creating micro-gaps. Material hardness too high (60A) preventing conformability to plastic housing variation.
Solution
Redesigned parting line 3mm away from seal. Changed to 40A hardness material with raised sealing rib for better contact pressure distribution.
Verification
Pressure decay testing at 50Pa for 60 seconds. Acoustic frequency response measurement confirming bass restoration.
Outcome: Leak rate reduced from 8% to <0.5% in production. Customer satisfaction scores improved, no design changes to housing required.
TWS Earbuds
IPX4 Rating Failure in Production
Earbuds passing prototype IP testing but failing in mass production, causing costly rework and delayed shipments to retail channels.
Root Cause
Flash on O-ring sealing surface from compression molding process. Batch-to-batch dimensional variation exceeding ±0.15mm tolerance stack-up budget.
Solution
Converted to LSR injection molding for flash elimination. Tightened critical dimension tolerance to ±0.05mm with in-process SPC monitoring.
Verification
IPX4 water spray testing per IEC 60529. 100% air leak testing in production with go/no-go criteria at 100Pa.
Outcome: IP test pass rate increased from 92% to 99.8%. Production yield improvement saved $50K+ in rework costs per quarter.
Smartphone
Audible Squeak During Calls
Receiver vibration gasket generating audible squeak noise during phone calls, resulting in customer complaints and warranty returns.
Root Cause
High friction coefficient between silicone gasket and metal speaker frame. Vibration at receiver frequency (1-3kHz) causing stick-slip friction noise.
Solution
Changed to low-friction LSR material grade with reduced coefficient. Added powder coating treatment on contact surface to minimize stick-slip.
Verification
Vibration testing at receiver operating frequency. Noise level measurement in anechoic chamber confirming elimination.
Outcome: Squeak complaints dropped to zero in production testing. Warranty return rate for audio issues reduced by 85%.
Automotive HMI
Assembly Interference & Rework
Acoustic seal causing assembly interference during automated installation, requiring manual rework and slowing production line throughput.
Root Cause
Gasket geometry creating high insertion force exceeding robotic assembly capability. Tolerance stack-up not accounting for housing deformation under compression.
Solution
Redesigned with tapered lead-in geometry for easier insertion. Reduced initial compression from 35% to 25% while maintaining seal effectiveness.
Verification
Insertion force measurement confirming <15N target. Automated assembly trials with 100-unit validation run.
Outcome: Assembly success rate improved from 78% to 99.5%. Line throughput increased by 40%, eliminating manual rework station.
What You Can Expect From Our Engineering Support
24-48 hour response with preliminary root cause analysis and recommended solution approach
Data-driven problem solving using dimensional analysis, material testing, and process validation
Rapid prototype turnaround (5-7 days) for design iterations and validation testing
Verification testing aligned to your quality standards with documented test reports
Facing a Similar Issue?
Send us your problem description, failure symptoms, and current design. We'll analyze and propose a solution approach within 48 hours.
Get Engineering Support
